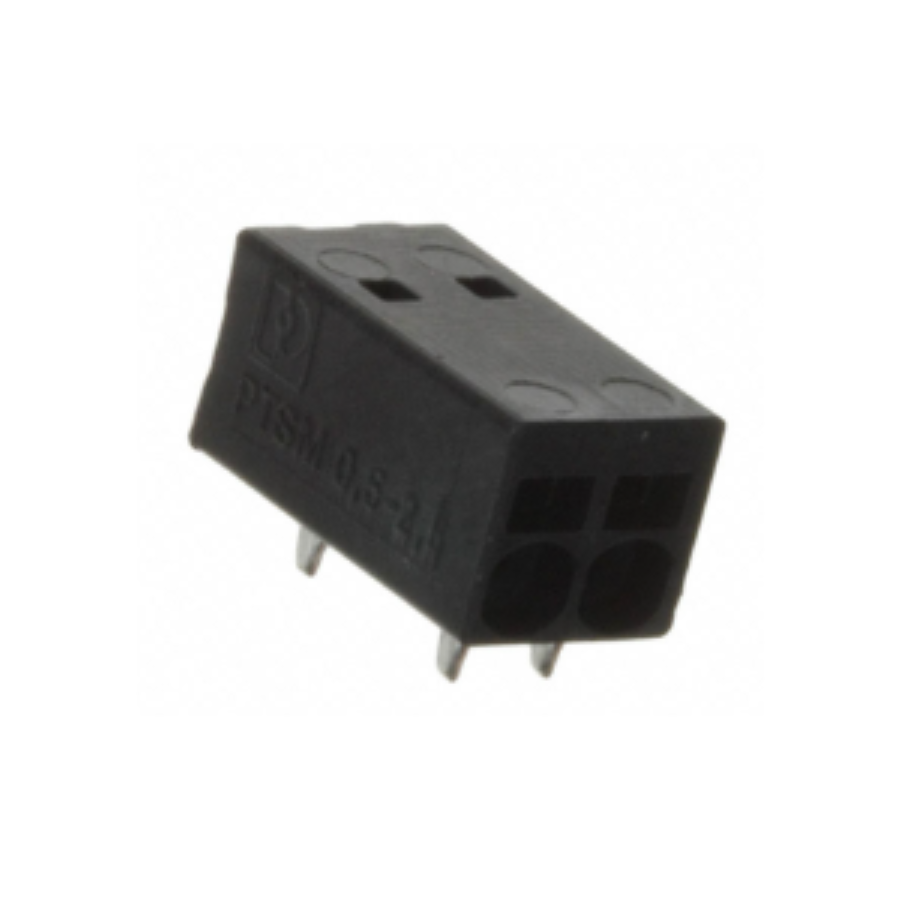

1770885
Manufacturer:
Phoenix Contact
Mfr.Part #:
1770885
Datasheet:
Description:
Terminal Blocks PCB Mount 2 2.5 mm 5 A 150 V 26 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 10 mm |
| Termination | Screw |
| Number of Pins | 2 |
| Height | 7.1 mm |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 150 V |
| Contact Plating | Tin |
| Pitch | 2.5 mm |
| Current | 5 A |
| Current Rating | 5 A |
| Max Current Rating | 6 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Color | Black |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Black |
| Connection Method | Push-In |
| Wire Gauge Range | 26 AWG to 20 AWG |
Stock: 2409
